產品描述

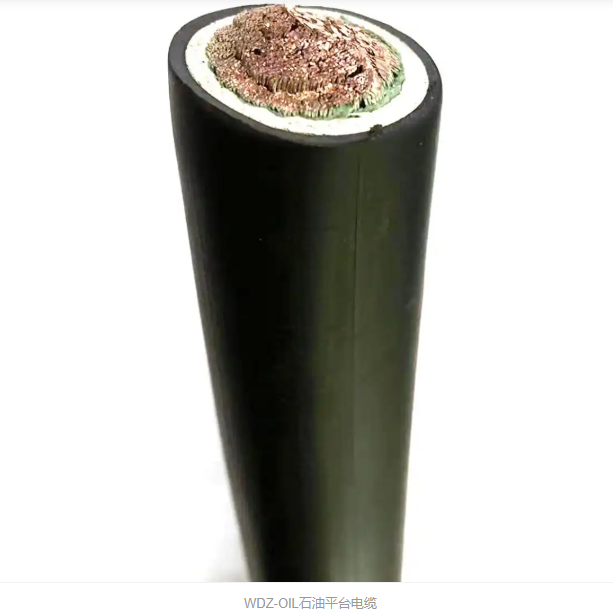

石油平臺電纜 WDZ OIL-550MCM
產品介紹
石油平臺電纜 WDZ OIL-550MCM適用于海上、陸地石油鉆井平臺用大功率輸電和電氣控制裝置，電纜具有良好的耐熱、高載流量、柔軟、耐曲撓、耐油、耐磨損、
耐低溫、耐腐蝕、耐日光老化、耐潮濕、阻燃、低煙無鹵及低毒性能。
電纜導體的長期允許工作溫度為：-55～125℃
電纜敷設時 小彎曲半徑不小于6倍電纜外徑
規格：535MCM 截面：271mm2
導體：鍍錫銅絲
絕緣：乙丙橡膠
護套：低煙無鹵橡膠
型 號 | 截面 | 美國線規 | 股數 / 線徑 | 電線外徑 | 20 ℃直流電阻 | |
600V | 2000V | |||||
WDZ OIL | 0.75 | 19 | 24/0.20 | 3.0 | 4.3 | 26.7 |
18 | ||||||
1.0 | 17 | 32/0.20 | 3.3 | 4.5 | 20.0 | |
16 | ||||||
1.5 | 15 | 48/0.20 | 3.6 | 4.8 | 13.7 | |
14 | ||||||
2.5 | 13 | 77/0.20 | 4.2 | 5.3 | 8.21 | |
12 | ||||||
4.0 | 11 | 126/0.20 | 5.0 | 6.3 | 5.0 | |
10 | ||||||
6 | 9 | 189/0.20 | 5.7 | 6.3 | 3.39 | |
8 | ||||||
10 | 7 | 322/0.20 | 7.7 | 8.5 | 1.95 | |
6 | ||||||
16 | 5 | 513/0.20 | 9.0 | 9.8 | 1.24 | |
4 | ||||||
25 | 3 | 798/0.20 | 10.5 | 11.3 | 0.79 | |
2 | ||||||
35 | 1 | 1121/0.20 | 11.8 | 12.6 | 0.56 | |
50 | 1/0 | 703/0.30 | 13.9 | 15.2 | 0.393 | |
2/0 | ||||||
70 | 3/0 | 999/0.30 | 16.5 | 17.4 | 0.277 | |
95 | 4/0 | 1332/0.30 | 18.6 | 19.8 | 0.21 | |
120 | 250MCM | 1702/0.30 | 21.0 | 21.8 | 0.164 | |
150 | 300MCM | 2109/0.30 | 23.4 | 24.6 | 0.132 | |
350MCM | ||||||
185 | 400MCM | 1443/0.40 | 25.5 | 26.8 | 0.108 | |
225 | 444MCM | 1100/0.51 | 26.0 | 28.0 | 0.0883 | |
240 | 500MCM | 1924/0.40 | 29.4 | 30.6 | 0.0817 | |
271.7 | 535MCM | 1325/0.51 | 30.0 | 32.0 | 0.0732 | |
300 | 550MCM | 2368/0.40 | 32.0 | 33.4 | 0.0654 | |
